DM74LS32 Datasheet - Fairchild Semiconductor

DM74LS32 Quad 2-Input OR Gate

This device contains four independent gates each of which performs the logic OR function. Ordering Code: Order Number DM74LS32M DM74LS32SJ DM74LS32N Package Number M14A M14D N14A Package Description 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow 14-Lead Small Outline Pa.

DM74LS32_FairchildSemiconductor.pdf

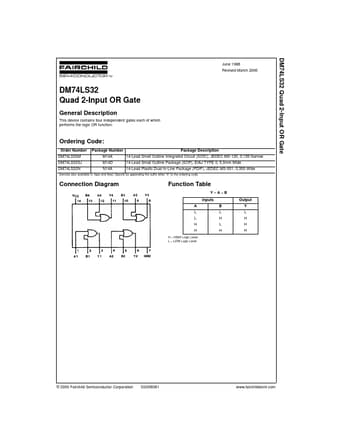

Preview of DM74LS32 PDF
DM74LS32 Datasheet Preview Page 2 DM74LS32 Datasheet Preview Page 3

Datasheet Details

Part number:

DM74LS32

Manufacturer:

Fairchild Semiconductor

File Size:

59.89 KB

Description:

Quad 2-input or gate.
