DM74LS02 Datasheet - Fairchild Semiconductor

DM74LS02 Quad 2-Input NOR Gate

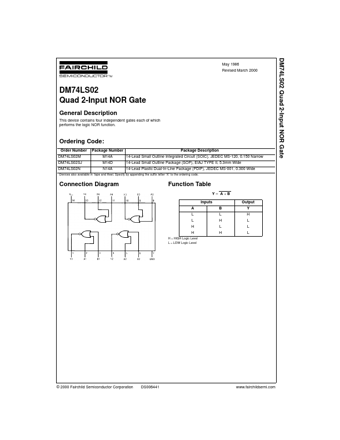

This device contains four independent gates each of which performs the logic NOR function. Ordering Code: Order Number DM74LS02M DM74LS02SJ DM74LS02N Package Number M14A M14D N14A Package Description 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow 14-Lead Small Outline P.

DM74LS02_FairchildSemiconductor.pdf

Preview of DM74LS02 PDF
DM74LS02 Datasheet Preview Page 2 DM74LS02 Datasheet Preview Page 3

Datasheet Details

Part number:

DM74LS02

Manufacturer:

Fairchild Semiconductor

File Size:

59.83 KB

Description:

Quad 2-input nor gate.
