DM74S182

Look-Ahead Carry Generator

DM74S182 Features

* s Typical propagation delay time 7 ns s Typical power dissipation 260 mW Ordering Code: Order Number Package Number Package Description DM74S182N N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide Connection Diagram Pin Designations Designation G0, G1, G2, G3 P0, P1,

DM74S182 General Description

These circuits are high-speed, look-ahead carry generators, capable of anticipating a carry across four binary adders or groups of adders. They are cascadable to perform full look-ahead across n-bit adders. Carry, generatecarry, and propagate-carry functions are provided as shown in the pin designat.

DM74S182 Datasheet (52.63 KB)

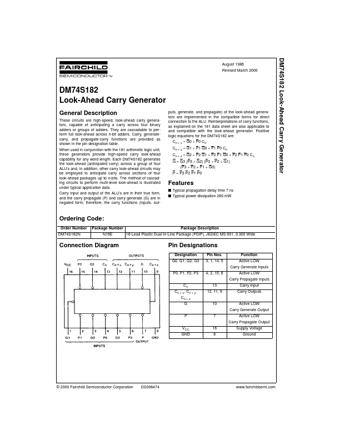

Preview of DM74S182 PDF

Datasheet Details

Part number:

DM74S182

Manufacturer:

Fairchild Semiconductor

File Size:

52.63 KB

Description:

Look-ahead carry generator.
