DM9324

5-Bit Comparator

DM9324 General Description

The DM9324 expandable comparators provide comparison between two 5-bit words and give three outputs

*“less than”, “greater than” and “equal to”. A HIGH on the active LOW Enable Input forces all three outputs LOW. Ordering Code: Order Number DM9324N Package Number N16E Package Description 16-.

DM9324 Datasheet (208.49 KB)

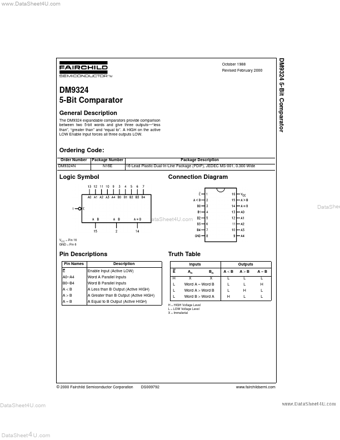

Preview of DM9324 PDF

Datasheet Details

Part number:

DM9324

Manufacturer:

Fairchild Semiconductor

File Size:

208.49 KB

Description:

5-bit comparator.
