DM9321 - DUAL 1-OF-4 DECODER

Product Overview

National Semiconductor

Datasheet Details

Part number	DM9321
Manufacturer	National Semiconductor
File Size	300.76 KB
Description	DUAL 1-OF-4 DECODER
Datasheet	DM9321 Datasheet
Additional preview pages of the DM9321 datasheet.

Product details

Description

The 9321 consists of two independent multipurpose decoders each designed to accept two inputs and provide four mutually exclusive outputs In addition an active LOW enable input which gives demultiplexing capability is provided for each decoder

Features

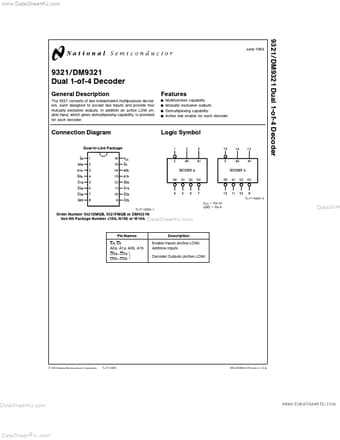

Y Y Y Y Multifunction capability Mutually exclusive outputs Demultiplexing capability Active low enable for each decoder Connection Diagram Dual-In-Line Package Logic Symbol TL F 10209.
2 TL F 10209.
1 VCC e Pin 16 GND e Pin 8 DataShee Order Number 9321DMQB 9321FMQB or DM9321N See NS Package Number J16A N16E or W16A DataSheet4U. com Pin Names Ea Eb A0a A1a A0b A1b O0a.
O3a O0b.
O3b.
