DM9602 Datasheet - Fairchild Semiconductor

Dual Retriggerable Resettable One Shots

DM9602 Features

* s 70 ns to ∞ output width range s Resettable and retriggerable

* 0% to 100% duty cycle s TTL input gating

* leading or trailing edge triggering s Complementary TTL outputs s Optional retrigger lock-out capability s Pulse width compensated for VCC and temperature variations Ordering Code

DM9602 General Description

These dual resettable, retriggerable one shots have two inputs per function; one which is active HIGH, and one which is active LOW. This allows the designer to employ either leading-edge or trailing-edge triggering, which is independent of input transition times. When input conditions for triggering.

DM9602 Datasheet (84.24 KB)

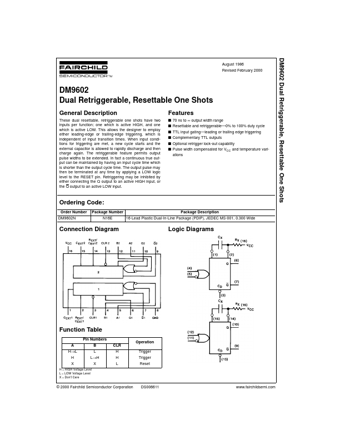

DM9602 Datasheet Preview — Preview of DM9602 PDF

Datasheet Details

Part number:

DM9602

Manufacturer:

Fairchild Semiconductor

File Size:

84.24 KB

Description:

Dual retriggerable resettable one shots.
DM9602 Dual Retriggerable, Resettable One Shots August 1986 Revised February 2000 DM9602 Dual Retriggerable, Resettable One Shots General Descriptio.
