FAN6224

Synchronous Rectification Controller

Fairchild Semiconductor

FAN6224 Features

* mWSaver™ Technology: - Internal Green Mode to Stop SR Switching for Lower No-Load Power Consumption - 300 A Ultra-Low Green Mode Operating Current

* Synchronous Rectification Controller

* Suited for High-Side and Low-Side of Flyback Converters in QR, DCM, and CCM Operation

* Suite

FAN6224 General Description

FAN6224 is a secondary-side Synchronous Rectification (SR) controller to drive SR MOSFET for improved efficiency. The IC is suitable for flyback converters and forward freewheeling rectification. FAN6224 can be applied in Continuous or Discontinuous Conduction Mode (CCM and DCM) and Quasi-Resonant (.

FAN6224 Datasheet (1.27 MB)

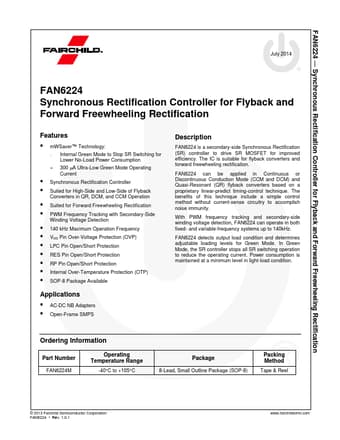

FAN6224 Datasheet Preview — Preview of FAN6224 PDF

Datasheet Details

Part number:

FAN6224

Manufacturer:

Fairchild Semiconductor

File Size:

1.27 MB

Description:

Synchronous rectification controller.
FAN6224

* Synchronous Rectification Controller for Flyback and Forward Freewheeling Rectification July 2014 FAN6224 Synchronous Rectificatio.
