FAN6248HC

Advanced Synchronous Rectifier Controller

FAN6248HC Features

* Highly Integrated Self-contained Control of Synchronous Rectifier with a Minimum External Component Count

* Optimized for LLC Resonant Converter

* Anti Shoot-through Control for Reliable SR Operation

* Separate 100 V Rated Sense Inputs for Sensing the Drain and Sour

FAN6248HC General Description

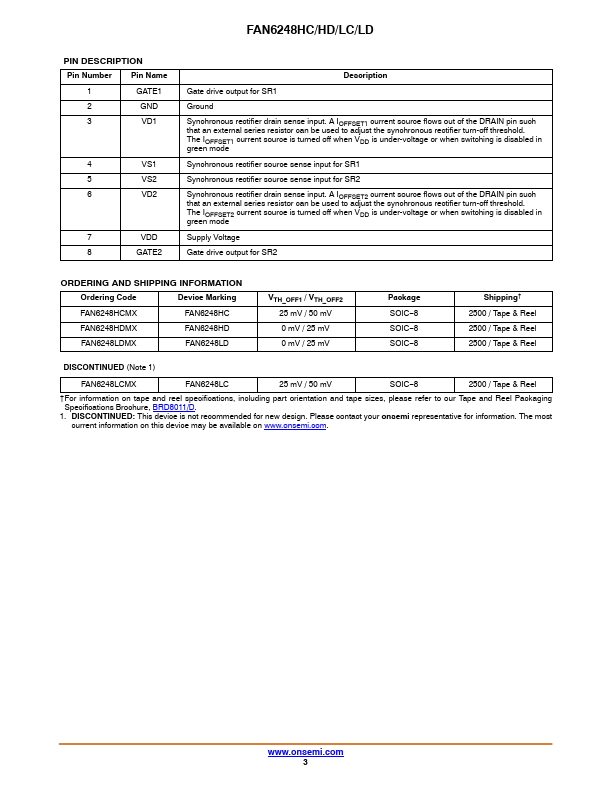

Pin Number Pin Name 1 GATE1 2 GND 3 VD1 4 VS1 5 VS2 6 VD2 7 VDD 8 GATE2 Description Gate drive output for SR1 Ground Synchronous rectifier drain sense input. A IOFFSET1 current source flows out of the DRAIN pin such that an external series resistor can be used to adjust the synchro.

FAN6248HC Datasheet (306.84 KB)

Preview of FAN6248HC PDF

Datasheet Details

Part number:

FAN6248HC

Manufacturer:

ON Semiconductor ↗

File Size:

306.84 KB

Description:

Advanced synchronous rectifier controller.
DATA SHEET www.onsemi.com Advanced Synchronous Rectifier Controller for LLC Resonant Converter FAN6248HC/HD/LC/LD The FAN6248 is an advanced synchron.
