FAN602 Offline Quasi-Resonant PWM Controller

The FAN602 is an advanced PWM controller aimed at achieving power density of ≥10W/in3 in universal input range AC/DC flyback isolated power supplies. It incorporates Quasi-Resonant (QR) control with proprietary Valley Switching with a limited frequency variation. QR switching provides high efficienc.

FAN602 Features

* High Efficiency Across Wide Input and Output Conditions in a Small Form Factor

* Quasi-Resonant Switching Operation with Programmable Maximum Blanking Frequency Range (60 kHz~ 140 kHz)

* User Configurable Burst Mode Entry and Exit to Maximize Light Load Efficiency and Minimize Audible

FAN602-FairchildSemiconductor.pdf

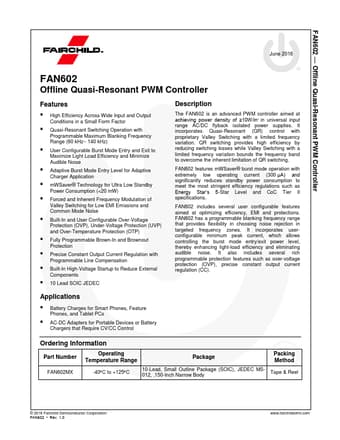

FAN602 Datasheet Preview — Preview of FAN602 PDF

Datasheet Details

Part number:

FAN602

Manufacturer:

Fairchild Semiconductor

File Size:

1.50 MB

Description:

Offline quasi-resonant pwm controller.
