FAN602F Offline Quasi-Resonant PWM Controller

The FAN602F is an advanced PWM controller aimed at achieving power density of ≥10W/in3 in universal input range AC/DC flyback isolated power supplies. It incorporates Quasi-Resonant (QR) control with proprietary Valley Switching with a limited frequency variation. QR switching provides high efficien.

FAN602F Features

* High Efficiency Across Wide Input and Output Conditions in a Small Form Factor

* Quasi-Resonant Switching Operation with Two Step Maximum Blanking Frequency (140 kHz and 75 kHz)

* User Configurable Burst Mode Entry and Exit to Maximize Light-Load Efficiency and Minimize Audible Noise

FAN602F-FairchildSemiconductor.pdf

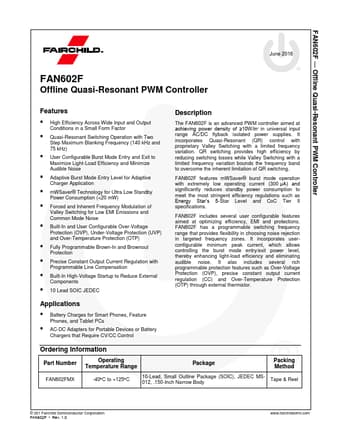

FAN602F Datasheet Preview — Preview of FAN602F PDF

Datasheet Details

Part number:

FAN602F

Manufacturer:

Fairchild Semiconductor

File Size:

1.55 MB

Description:

Offline quasi-resonant pwm controller.
