FAN7023

1W CMOS Mono Power Amplifier

FAN7023 Features

* 1W CMOS Mono Power Amplifier Description The FAN7023 is a bridge connected audio power amplifier capable of delivering 1W of continuous average power to an 8Ω load with less than 0.2%(THD) from a 5V power supply. The FAN7023 requires few external components and operates on low supply voltage from 2

FAN7023 General Description

The FAN7023 is a bridge connected audio power amplifier capable of delivering 1W of continuous average power to an 8Ω load with less than 0.2%(THD) from a 5V power supply. The FAN7023 requires few external components and operates on low supply voltage from 2.2V to 5.5V. Since the FAN7023 does not re.

FAN7023 Datasheet (353.62 KB)

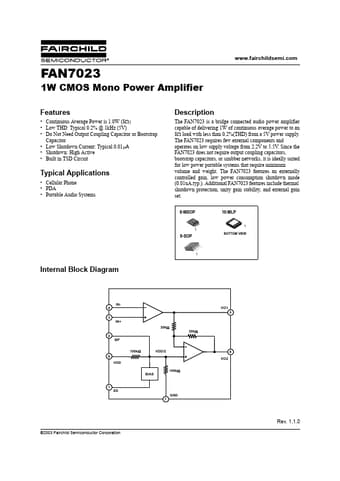

Preview of FAN7023 PDF

Datasheet Details

Part number:

FAN7023

Manufacturer:

Fairchild Semiconductor

File Size:

353.62 KB

Description:

1w cmos mono power amplifier.
