FAN7080-GF085 - Half Bridge Gate Driver

FAN7080-GF085 Description

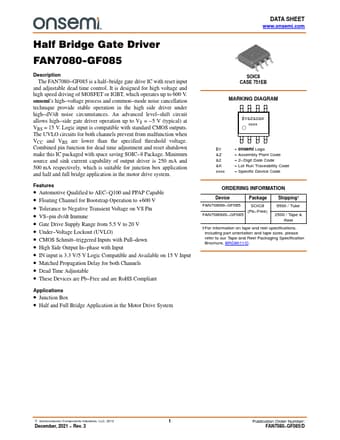

DATA SHEET www.onsemi.com Half Bridge Gate Driver FAN7080-GF085 .
The FAN7080. GF085 is a half. bridge gate drive IC with reset input and adjustable dead time control.

FAN7080-GF085 Features

* Automotive Qualified to AEC
* Q100 and PPAP Capable
* Floating Channel for Bootstrap Operation to +600 V
* Tolerance to Negative Transient Voltage on VS Pin
* VS
* pin dv/dt Immune
* Gate Drive Supply Range from 5.5 V to 20 V
* Under

FAN7080-GF085 Applications

* Junction Box
* Half and Full Bridge Application in the Motor Drive System SOIC8 CASE 751EB MARKING DIAGRAM $Y&Z&2&K xxxx $Y &Z &2 &K xxxx = onsemi Logo = Assembly Plant Code = 2
* Digit Date Code = Lot Run Traceability Code = Specific Device Code ORDERING INFORMATION Dev
