FAN7080 - Half Bridge Gate Driver

FAN7080 Description

FAN7080_F085 Half Bridge Gate Driver www.datasheet4u.com March 2009 FAN7080_F085 .
The FAN7080_F085_F085 is a half-bridge gate drive IC with reset input and adjustable dead time control.

FAN7080 Applications

* Junction Box
* Half and full bridge application in the motor drive system SOIC-8 Ordering Information Device FAN7080CM FAN7080CMX X : Tape & Reel type Package SOIC-8 SOIC-8 Operating Temp. -40 ° C ~ 125 ° C -40 ° C ~ 125 ° C ©2008 Fairchild Semiconductor Corporation 1 www. fa

📥 Download Datasheet

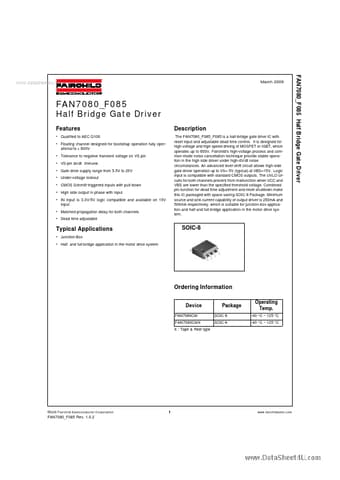

Preview of FAN7080 PDF
