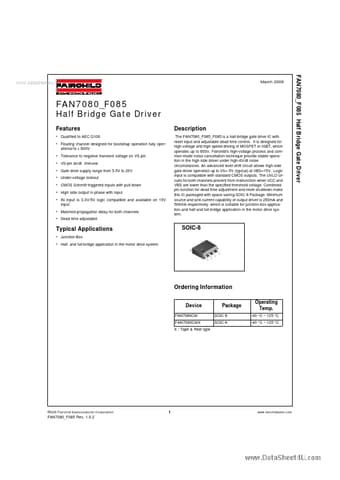

Additional preview pages of the FAN7080_F085 datasheet.

Product details

Description

The FAN7080_F085_F085 is a half-bridge gate drive IC with reset input and adjustable dead time control.

Features

Qualified to AEC Q100.
Floating channel designed for bootstrap operation fully oper- ational to + 600V.
Tolerance to negative transient voltage on VS pin.
VS-pin dv/dt immune.
Gate drive supply range from 5.5V to 20V.
Under-voltage lockout.
CMOS Schmitt-triggered inputs with pull-down.
High side output in phase with input.
IN input is 3.3V/5V logic compatible and available on 15V input.
Matched propagatio.
