FAN7080_GF085 - Half Bridge Gate Driver

Product Overview

Fairchild Semiconductor

Part number	FAN7080_GF085
Manufacturer	Fairchild Semiconductor
File Size	321.14 KB
Description	Half Bridge Gate Driver
Datasheet	FAN7080_GF085 Datasheet

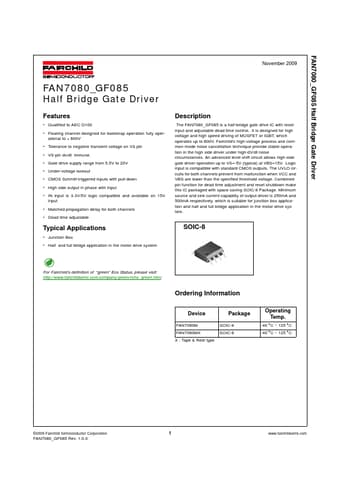

Additional preview pages of the FAN7080_GF085 datasheet.

The FAN7080_GF085 is a half-bridge gate drive IC with reset input and adjustable dead time control.

Qualified to AEC Q100.
Floating channel designed for bootstrap operation fully oper- ational to + 600V.
Tolerance to negative transient voltage on VS pin.
VS-pin dv/dt immune.
Gate drive supply range from 5.5V to 20V.
Under-voltage lockout.
CMOS Schmitt-triggered inputs with pull-down.
High side output in phase with input.
IN input is 3.3V/5V logic compatible and available on 15V input.
Matched propagatio.
