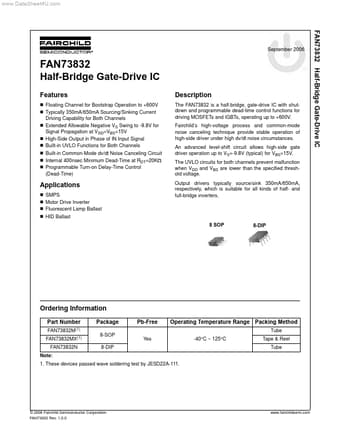

.. FAN73832 Half-Bridge Gate-Drive IC September 2006 Half-Bridge Gate-Drive IC Features - Floating Channel for Bootstrap Operation to +600V - Typically 350m A/650m A Sourcing/Sinking Current Description The FAN73832 is a half-bridge, gate-drive IC with shutdown and programmable dead-time control functions for driving MOSFETs and IGBTs, operating up to +600V. Fairchild’s high-voltage process and mon-mode noise canceling technique provide stable operation of high-side driver under high dv/dt noise circumstances. An advanced level-shift circuit allows high-side gate driver operation up to VS=-9.8V (typical) for VBS=15V. The UVLO circuits for both channels prevent malfunction when VDD and VBS are lower than the specified threshold voltage. Output drivers typically source/sink 350m A/650m A, respectively, which is suitable for all kinds of half- and full-bridge inverters. Driving Capability for Both Channels - Extended Allowable Negative VS Swing to -9.8V for - - - - - Signal Propagation at VDD=VBS=15V High-Side Output in Phase of IN Input Signal Built-in UVLO Functions for Both Channels Built-in mon-Mode dv/dt Noise Canceling Circuit Internal 400nsec Minimum Dead-Time at RDT=20KΩ Programmable Turn-on Delay-Time Control (Dead-Time) Applications - SMPS - Motor Drive Inverter - Fluorescent Lamp Ballast - HID Ballast 8 SOP 8-DIP Ordering Information Part Number FAN73832M(1) FAN73832MX(1) FAN73832N Note: 1. These devices passed wave soldering test by JESD22A-111. Package 8-SOP 8-DIP Pb-Free Yes Operating Temperature Range Packing Method Tube -40°C ~ 125°C Tape & Reel...
