FAN8702MP

6 Channel DSC Motor Driver

FAN8702MP Features

* Independent 6-Channel H-Bridge. Output Current up to 600mA (Each Channel) Constant Current Control on CH5 and CH6. Constant Voltage Control on CH1,2,3 and CH4. Built in Brake Function on CH3,4 and CH6

FAN8702MP General Description

The FAN8702 is designed for portable equipment such as DSC and mobile phone camera. It consists of 2 constant current and 4 constant voltage drive blocks suitable for shutter, auto-focus, iris and zoom motor drive. 48-LQFP-0707 48MLP7X7 Typical Applications

* DSC

* Mobile Phone Ca.

FAN8702MP Datasheet (357.69 KB)

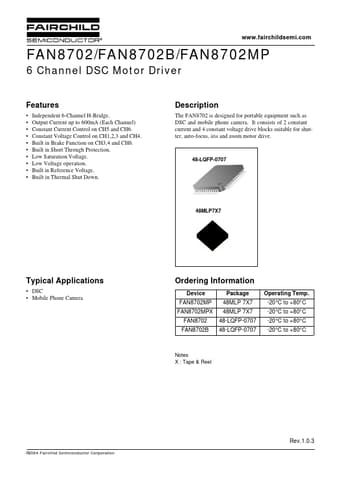

Preview of FAN8702MP PDF

Datasheet Details

Part number:

FAN8702MP

Manufacturer:

Fairchild Semiconductor

File Size:

357.69 KB

Description:

6 channel dsc motor driver.
