FAN104 Case Fan

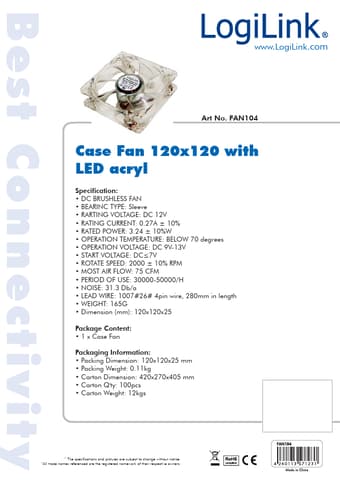

Best Connectivity www.LogiLink.com Art No. FAN104 Case Fan 120x120 with LED acryl Specification: DC BRUSHLESS FAN BEARINC TYPE: Sleeve RARTING VOLTAGE: DC 12V RATING CURRENT: 0.27A ± 10% RATED POWER: 3.24 ± 10%W OPERATION TEMPERATURE: BELOW 70 degrees OPERATION VOLTAGE: DC 9V-13V START VOLTAGE: DC≤7V ROTATE SPEED: 2000 ± 10% RPM MOST AIR FLOW: 75 CFM PERIOD OF USE: 30000-50000/H

FAN104 Datasheet (66.23 KB)

FAN104 Datasheet Preview — Preview of FAN104 PDF

Datasheet Details

Part number:

FAN104

Manufacturer:

LogiLink

File Size:

66.23 KB

Description:

Case fan.
