FAN103W - Primary-Side-Regulation PWM Controller

FAN103W Description

FAN103 W * Primary-Side-Regulation PWM Controller (PWM-PSR) FAN103W Primary-Side-Regulation PWM Controller (PWM-PSR) .
This third-generation Primary-Side-Regulation (PSR) and highly integrated PWM controller provides several features to enhance the performance of low-p.

FAN103W Features

* Low Standby Power Under 30mW
* High Voltage Startup
* Fewest External Component Counts
* Constant-Voltage (CV) and Constant-Current (CC) Control without Secondary-Feedback Circuitry
* Green-Mode Function: Linearly-Decreasing PWM Frequency
* Fixed PWM Frequency at 50kHz with

FAN103W Applications

* Battery chargers for cellular phones, cordless phones, PDA, digital cameras, power tools, etc.

📥 Download Datasheet

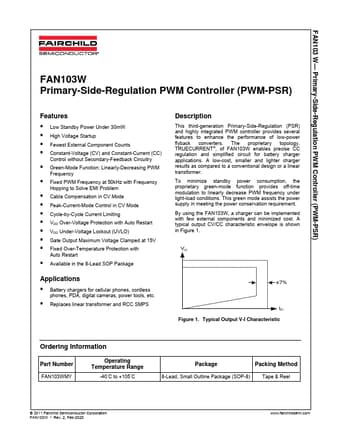

Preview of FAN103W PDF
