FAN1086

1.5A Adjustable/Fixed Low Dropout Linear Regulator

FAN1086 Features

* Low dropout voltage Load regulation: 0.05% typical Trimmed current limit On-chip thermal limiting Standard SOT-223, TO-263, and TO-252 packages Three-terminal adjustable or fixed 2.5V, 2.85V, 3.3V, 5V Description The FAN1086 and FAN1086-2.5

FAN1086 General Description

The FAN1086 and FAN1086-2.5, -2.85, -3.3 and -5 are low dropout three-terminal regulators with 1.5A output current capability. These devices have been optimized for low voltage where transient response and minimum input voltage are critical. The 2.85V version is designed specifically to be used in Ac.

FAN1086 Datasheet (331.78 KB)

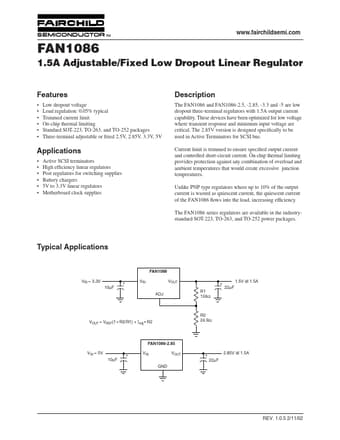

Preview of FAN1086 PDF

Datasheet Details

Part number:

FAN1086

Manufacturer:

Fairchild Semiconductor

File Size:

331.78 KB

Description:

1.5a adjustable/fixed low dropout linear regulator.
