FDD5614P Datasheet, Mosfet, Fairchild Semiconductor

FDD5614P Features

  • Mosfet

  •   –15 A,
      –60 V. RDS(ON) = 100 mΩ @ VGS =
      –10 V RDS(ON) = 130 mΩ @ VGS =
      –4.5 V
  • Fast switching speed

PDF File Details

Part number:

FDD5614P

Manufacturer:

Fairchild Semiconductor

File Size:

81.67kb

Download:

📄 Datasheet

Description:

60v p-channel powertrench mosfet. This 60V P-Channel MOSFET uses Fairchild’s high voltage PowerTrench process. It has been optimized for power management applications.

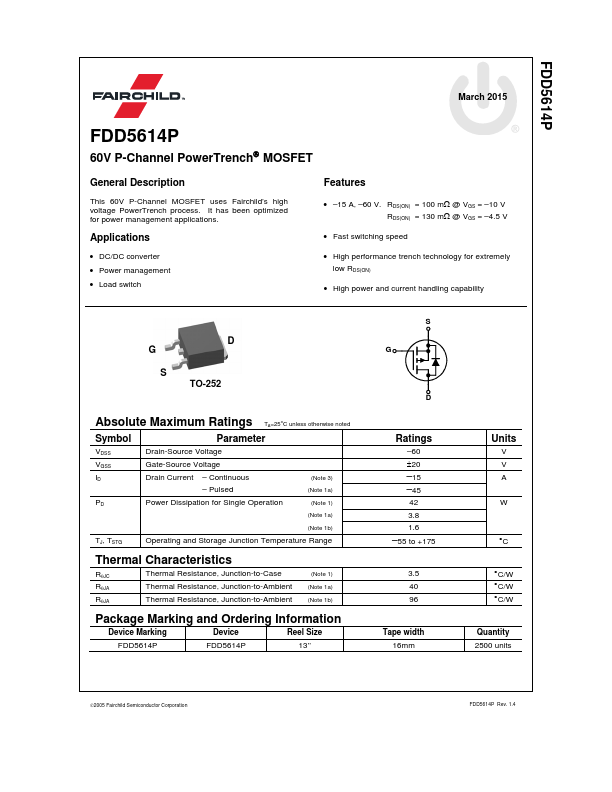

Datasheet Preview: FDD5614P 📥 Download PDF (81.67kb)

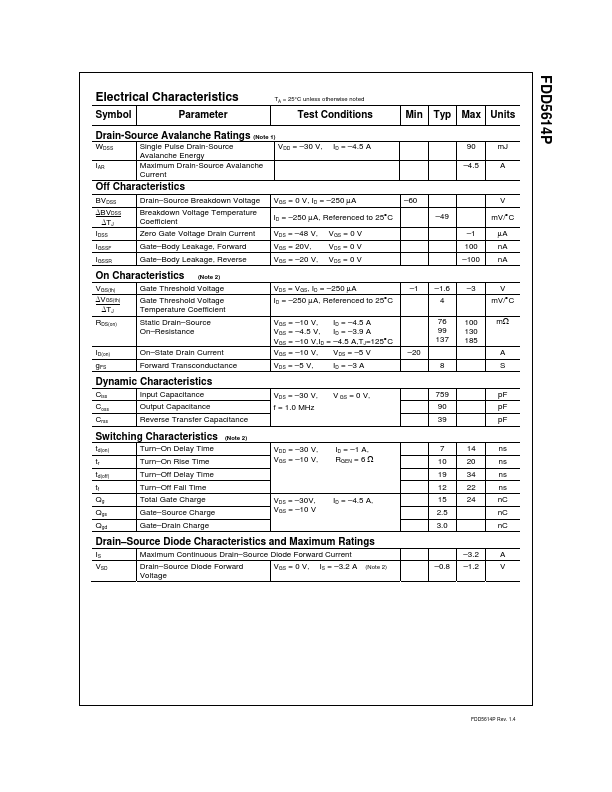

Page 2 of FDD5614P Page 3 of FDD5614P

FDD5614P Application

  • Applications Features

  •   –15 A,
      –60 V. RDS(ON) = 100 mΩ @ VGS =
      –10 V RDS(ON) = 130 mΩ @ VG

TAGS

FDD5614P
60V
P-Channel
PowerTrench
MOSFET
Fairchild Semiconductor
