FDMC2610 - N-Channel UltraFET Trench MOSFET

General Description

This N-Channel MOSFET is a rugged gate version of Fairchild Semiconductor‘s advanced Power Trench process.

It has been optimized for power management applications.

Max rDS(on) = 200mΩ at VGS = 10V, ID = 2.2A Max rDS(on) = 215mΩ at VGS = 6V, ID = 1.5A Low Profile - 1mm m

Key Features

  • General.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDMC2610 N-Channel MOSFET ON Semiconductor
FDMC2674 N-Channel MOSFET ON Semiconductor
FDMC2514SDC N-Channel MOSFET VBsemi
FDMC2514SDC Dual N-Channel MOSFET ON Semiconductor
FDMC2523P P-Channel MOSFET ON Semiconductor

Other Datasheets by Fairchild (now onsemi)

Part Number Description
FDMC2674 N-Channel UltraFET Trench MOSFET
FDMC2512SDC N-Channel MOSFET
FDMC2514SDC N-Channel Dual Cool PowerTrench SyncFET
FDMC2523P P-Channel QFET
FDMC0310AS MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

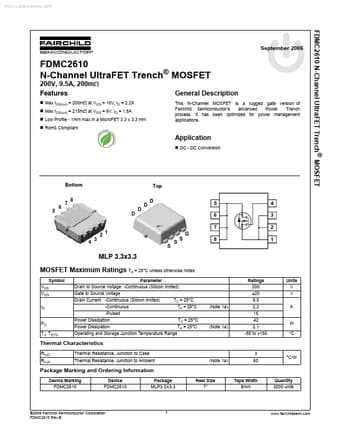

www.DataSheet4U.com FDMC2610 N-Channel UltraFET Trench® MOSFET September 2006 FDMC2610 N-Channel UltraFET Trench® MOSFET 200V, 9.5A, 200mΩ Features General Description This N-Channel MOSFET is a rugged gate version of Fairchild Semiconductor‘s advanced Power Trench process. It has been optimized for power management applications. „ Max rDS(on) = 200mΩ at VGS = 10V, ID = 2.2A „ Max rDS(on) = 215mΩ at VGS = 6V, ID = 1.5A „ Low Profile - 1mm max in a MicroFET 3.3 x 3.3 mm „ RoHS Compliant tm Application „ DC - DC Conversion Bottom Top 5 6 7 8 D D D D 5 6 7 G S S S 4 3 2 1 4 3 2 1 8 MLP 3.3x3.
