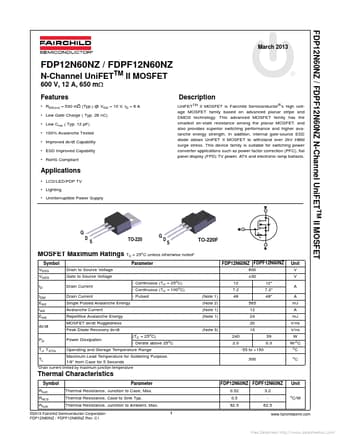

FDPF12N60NZ Datasheet, Mosfet, Fairchild Semiconductor

FDPF12N60NZ Features

• Mosfet
• RDS(on) = 530 m (Typ.) @ VGS = 10 V, ID = 6 A
• Low Gate Charge ( Typ. 26 nC)
• Low Crss ( Typ. 12 pF)
• 100% Avalanche Tested
• Improved dv/d

PDF File Details

Part number:

FDPF12N60NZ

Manufacturer:

Fairchild Semiconductor

File Size:

401.88kb

Download:

📄 Datasheet

Description:

N-channel mosfet. UniFETTM II MOSFET is Fairchild Semiconductor®’s high voltage MOSFET family based on advanced planar stripe and DMOS technology. This

FDPF12N60NZ Application

• Applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts. Applications
• LCD

TAGS

FDPF12N60NZ

Fairchild Semiconductor
