FJBE2150D Datasheet, Transistor, Fairchild Semiconductor

FJBE2150D Features

  • Transistor (FDC655 MOSFET) VCS(ON) 0.131 V IC 0.5 A Equiv. RCS(ON) 0.261 Ω(1)
  • Low Equivalent On Resistance
  • Very Fast Switch: 150 kHz
  • Squared RBSOA: Up to 1500 V <

PDF File Details

Part number:

FJBE2150D

Manufacturer:

Fairchild Semiconductor

File Size:

678.33kb

Download:

📄 Datasheet

Description:

Npn silicon transistor. The FJBE2150D is a low-cost, high-performance power switch designed to be used in an ESBC™ configuration in applications such as: pow

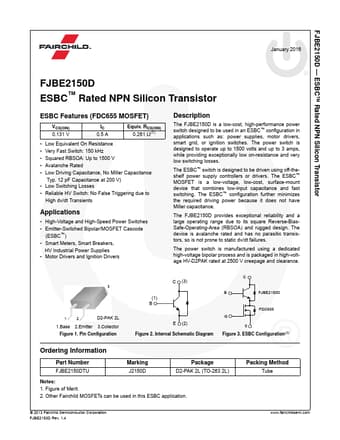

Datasheet Preview: FJBE2150D 📥 Download PDF (678.33kb)
Page 2 of FJBE2150D Page 3 of FJBE2150D

FJBE2150D Application

  • Applications
  • High-Voltage and High-Speed Power Switches
  • Emitter-Switched Bipolar/MOSFET Cascode (ESBC™)
  • Smart Meters,
