FL77904 Phase-cut Dimmable Compact LED Direct AC Driver

The FL77904 is a direct AC line LED driver with a minimal number of external RC passive components. In normal configuration, one resistor adjusts LED current for desired system luminance and another bypass capacitor provides a stable voltage to an internal biasing shunt regulator. The FL77904 provid.

FL77904 Features

* The simplest Direct AC LED Driver with Only Two External RC Passive Components

* Wide AC Input Range: 90~305 VAC

* Four Integrated High-Voltage LED Constant Current Sinks of up to 75 mA RMS Input Current Capability

* High Power Factor (above 0.98 in normal configuration) Low Harmon

FL77904-FairchildSemiconductor.pdf

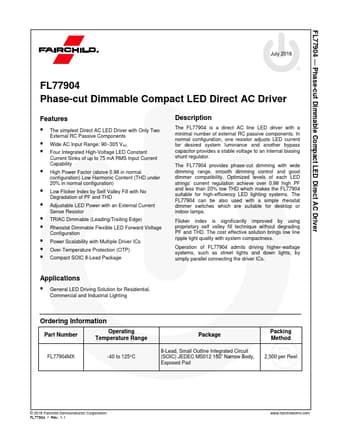

FL77904 Datasheet Preview — Preview of FL77904 PDF

Datasheet Details

Part number:

FL77904

Manufacturer:

Fairchild Semiconductor

File Size:

403.77 KB

Description:

Phase-cut dimmable compact led direct ac driver.
