FL77905 - Analog / PWM / Phase-cut Dimmable Compact LED Direct AC Driver

FL77905 Description

FL77905 * Analog / PWM / Phase-cut Dimmable Compact LED Direct AC Driver July 2016 FL77905 Analog / PWM / Phase-cut Dimmable Compact LED Dir.
The FL77905 is a direct AC line LED driver with minimal number of external RC passive components.

FL77905 Features

* The simplest Direct AC LED Driver with Only Two External RC Passive Components
* Wide AC Input Range : 90~305 VAC
* Three Integrated High-Voltage LED Constant Current Sinks of up to 75 mA (RMS) Capability
* TRIAC Dimmable (Leading/Trailing Edge)
* Rheostat Dimmable
* Analog

FL77905 Applications

* General LED Driving Solution for Residential, Commercial and Industrial Lighting Ordering Information Part Number Operating Temperature Range FL77905MX -40 to 125°C Package 8-Lead, Small Outline Integrated Circuit (SOIC) JEDEC MS012 150” Narrow Body, Exposed Pad Packing Method 2,500 per

📥 Download Datasheet

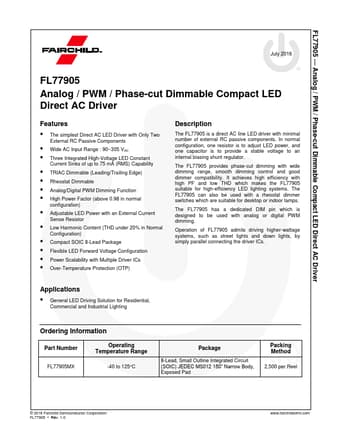

Preview of FL77905 PDF
