FMS6145 Datasheet - Fairchild Semiconductor

Low Cost Five Channel 4th Order Standard Definition Video Filter Driver

FMS6145 Features

* Five fourth-order 8MHz (SD) filters

* Transparent input clamping

* Dual video load drive (2Vpp, 75Ω )

* AC or DC-coupled inputs

* AC or DC-coupled outputs

* DC-coupled outputs eliminate AC-coupling capacitors 5V only

* Lead Free package - TSSO

FMS6145 General Description

FMS6145 Low Cost Video Filter (LCVF) is intended to replace passive LC filters and drivers with a low-cost integrated device. Five 4th order filters provide improved image quality compared to typical 2nd or 3rd order passive solutions. The FMS6145 may be directly driven by a DC-coupled DAC output or a.

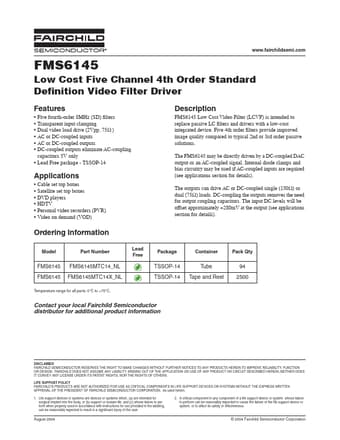

FMS6145 Datasheet (63.98 KB)

Preview of FMS6145 PDF

Datasheet Details

Part number:

FMS6145

Manufacturer:

Fairchild Semiconductor

File Size:

63.98 KB

Description:

Low cost five channel 4th order standard definition video filter driver.
