FMS6145MTC14X_NL, Low Cost Five Channel 4th Order Standard Definition Video Filter Driver

www.fairchildsemi.com FMS6145 Low Cost Five Channel 4th Order Standard Definition Video Filter Driver .
FMS6145 Low Cost Video Filter (LCVF) is intended to replace passive LC ﬁlters and drivers with a low-cost integrated device.

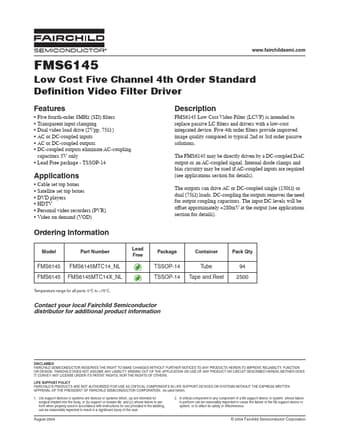

datasheet Preview Page 1 from Datasheet4u.com

FMS6145MTC14X_NL_FairchildSemiconductor.pdf

FMS6145MTC14X_NL Datasheet Preview — Preview of FMS6145MTC14X_NL PDF

Datasheet Details

Part number:

FMS6145MTC14X_NL

Manufacturer:

Fairchild Semiconductor

File Size:

63.98 KB

Description:

Low Cost Five Channel 4th Order Standard Definition Video Filter Driver

Features

* Five fourth-order 8MHz (SD) ﬁlters
* Transparent input clamping
* Dual video load drive (2Vpp, 75Ω )
* AC or DC-coupled inputs
* AC or DC-coupled outputs
* DC-coupled outputs eliminate AC-coupling capacitors 5V only
* Lead Free package - TSSO

Applications

* section for details). The outputs can drive AC or DC-coupled single (150Ω) or dual (75Ω) loads. DC-coupling the outputs removes the need for output coupling capacitors. The input DC levels will be offset approximately +280mV at the output (see applications section for details). Applications
