FMS6346 Datasheet - Fairchild Semiconductor

FMS6346 6th Order SD/HD Video Filter Driver

The FMS6346 Low Cost Video Filter (LCVF) is intended to replace passive LC ﬁlters and drivers with a low-cost integrated device. Six 6th order Butterworth ﬁlters provide improved image quality compared to typical passive solutions. The combination of low power Standard Deﬁnition (SD) and High Deﬁnit.

FMS6346 Features

* Three selectable sixth-order 8/32MHz (SD/HD) ﬁlters Three ﬁxed sixth-order 8MHz (SD) ﬁlters Transparent input clamping Single video load drive (2Vpp, 150Ω, AV = 6dB) AC or DC-coupled inputs AC or DC-coupled outputs DC-coupled outputs

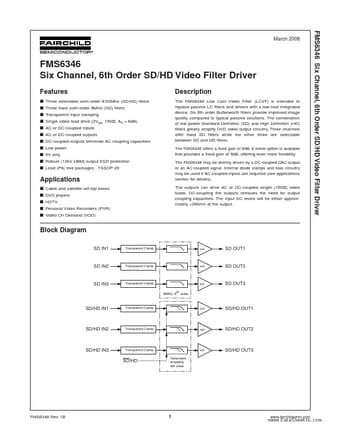

FMS6346_FairchildSemiconductor.pdf

FMS6346 Datasheet Preview — Preview of FMS6346 PDF

Datasheet Details

Part number:

FMS6346

Manufacturer:

Fairchild Semiconductor

File Size:

270.15 KB

Description:

6th order sd/hd video filter driver.
