FMS6363A - Three-Channel 7th-Order High-Definition VoltagePlus Video Filter Driver

FMS6363A Description

FMS6363A * Three-Channel 7th-Order High-Definition VoltagePlus™ Video Filter Driver August 2011 FMS6363A Three-Channel 7th-Order High-Defini.
The FMS6363A VoltagePlus™ video filter is intended to replace passive LC filters and drivers w ith a costth effective integrated device.

FMS6363A Features

* Three 7th-Order 32MHz (HD) Filters Drives Single AC-or DC-Coupled Video Loads (150Ω) Drives Dual AC-or DC-Coupled Video Loads (75Ω) Transparent Input Clamping Single Supply: 3.3V
* 5V AC-or DC-Coupled Inputs and Outputs DC-Coupled Output

FMS6363A Applications

* section for details). The outputs can drive AC-or DC-coupled single (150Ω) or dual (75 Ω) video loads. DC coupling the outputs removes the need for large out put coupling capacitors. The input DC levels are offset approximately +280mV at the output (see Applications section for details). Applicatio

📥 Download Datasheet

Preview of FMS6363A PDF

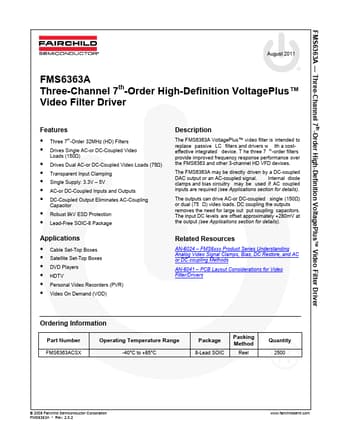

datasheet Preview Page 2 datasheet Preview Page 3
