FMS6400

Dual Channel Video Drivers

FMS6400 Features

* 7.1 MHz 5th order Y,C filters with composite summer

* Selectable for 0dB or 6dB gain

* 50dB stopband attenuation at 27MHz on Y, C and CV outputs

* Better than 0.1 dB flatness to 4.5MHz on Y,C and CV outputs

* No external frequency selection components or clocks

* < 5ns grou

FMS6400 General Description

The FMS6400 is a dual Y/C 5th order Butterworth lowpass video filter optimized for minimum overshoot and flat group delay. The device also contains a summing circuit to generate filtered composite video. In a typical application, the Y and C input signals from DACs are AC coupled into the filters. B.

FMS6400 Datasheet (76.16 KB)

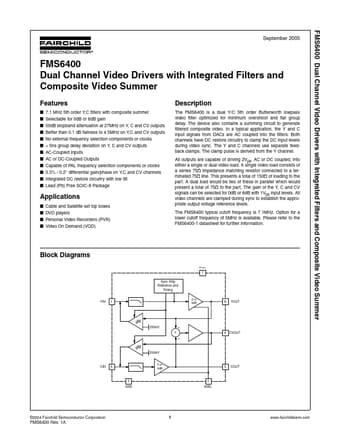

Preview of FMS6400 PDF

Datasheet Details

Part number:

FMS6400

Manufacturer:

Fairchild Semiconductor

File Size:

76.16 KB

Description:

Dual channel video drivers.
FMS6400 Dual Channel Video Drivers with Integrated Filters and Composite Video Summer September 2005 FMS6400 Dual Channel Video Drivers with Integra.
