FMS6403MTC20

Triple Video Drivers w/Selectable HD/Progressive/SD/ Bypass Filters for RGB and YPbPr Signals

FMS6403MTC20 Features

* Three video anti-aliasing or reconstruction filters

* 2:1 Mux inputs for YPbPr and RGB inputs

* Supports D1, D2, D3 and D4 video D-connector (EIAJ CP-4120)

* Selectable 8MHz/15MHz/30MHz 6th order filters plus bypass

* Works with SD (480i), Progressive (480p) and HD (1080i/ 720p)

FMS6403MTC20 General Description

The FMS6403 offers comprehensive filtering for TV, set top box or DVD applications. This part consists of a triple 6th order filter with selectable 30MHz, 15MHz, or 8MHz cutoff frequencies. The filters may also be bypassed so that the bandwidth is limited only by the output amplifiers. A 2 to 1 multiple.

FMS6403MTC20 Datasheet (426.65 KB)

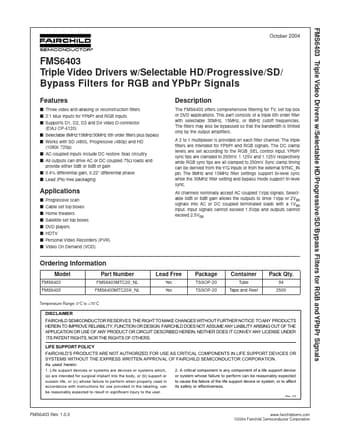

Preview of FMS6403MTC20 PDF

Datasheet Details

Part number:

FMS6403MTC20

Manufacturer:

Fairchild Semiconductor

File Size:

426.65 KB

Description:

Triple video drivers w/selectable hd/progressive/sd/ bypass filters for rgb and ypbpr signals.
FMS6403 Triple Video Drivers w/Selectable HD/Progressive/SD/Bypass Filters for RGB and YPbPr Signals October 2004 FMS6403 Triple Video Drivers w/Sel.
