FMS6419MSA28

Selectable RGB (YUV) HD/SD Video Filter Driver with Y/ C/ Composite Outputs

FMS6419MSA28 Features

* Three channel video reconstruction filters

* YUV/RGB filters

* 2:1 Mux inputs for multiple RGB/YUV inputs

* Selectable 8MHz or 30MHz 6th order filters for RGB (YUV) applications

* 8MHz 6th order Y, C filters with composite summer

* DC coupled input, AC c

FMS6419MSA28 General Description

The FMS6419 offers comprehensive filtering for set top box or DVD applications. This part consists of a triple 6th order filter with selectable 30MHz or 8MHz frequencies. A 2-to-1 multiplexer is provided on each filter channel. The triple filters are intended for either YUV or RGB signals. All channels .

FMS6419MSA28 Datasheet (160.78 KB)

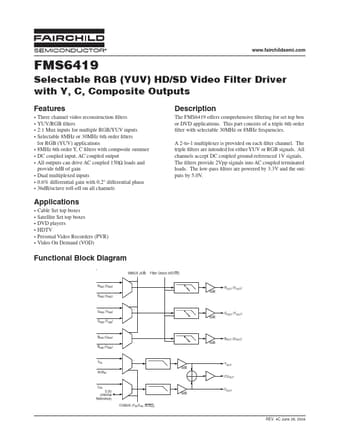

Preview of FMS6419MSA28 PDF

Datasheet Details

Part number:

FMS6419MSA28

Manufacturer:

Fairchild Semiconductor

File Size:

160.78 KB

Description:

Selectable rgb (yuv) hd/sd video filter driver with y/ c/ composite outputs.
