FMS6419MSA28X, Selectable RGB (YUV) HD/SD Video Filter Driver with Y/ C/ Composite Outputs

www.fairchildsemi.com FMS6419 Selectable RGB (YUV) HD/SD Video Filter Driver with Y, C, Composite Outputs .
The FMS6419 offers comprehensive ﬁltering for set top box or DVD applications.

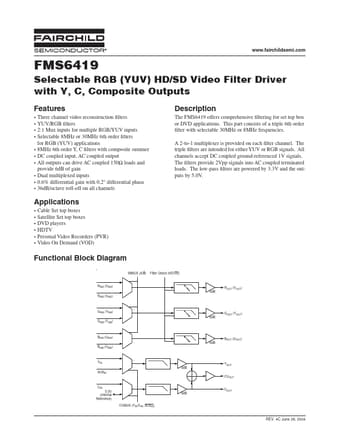

datasheet Preview Page 1 from Datasheet4u.com

FMS6419MSA28X_FairchildSemiconductor.pdf

FMS6419MSA28X Datasheet Preview — Preview of FMS6419MSA28X PDF

Datasheet Details

Part number:

FMS6419MSA28X

Manufacturer:

Fairchild Semiconductor

File Size:

160.78 KB

Description:

Selectable RGB (YUV) HD/SD Video Filter Driver with Y/ C/ Composite Outputs

Features

* Three channel video reconstruction ﬁlters
* YUV/RGB ﬁlters
* 2:1 Mux inputs for multiple RGB/YUV inputs

Applications

* 8MHz 6th order Y, C ﬁlters with composite summer
* DC coupled input, AC coupled output
* All outputs can drive AC coupled 150Ω loads and provide 6dB of gain
* Dual multiplexed inputs
* 0.6% differential gain with 0.2° differential phase
* 36dB/octave
