FNA21012A, Motion SPM 2 module

FNA21012A 1200 V Motion SPM® 2 Series FNA21012A 1200 V Motion SPM® 2 Series .
The FNA21012A is a Motion SPM® 2 module providing a fully-featured, high-performance inverter output stage for AC induction, BLDC, and PMSM motors.

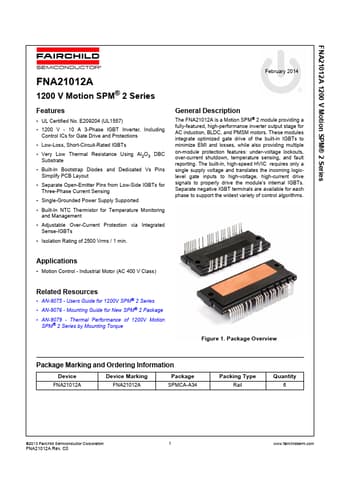

datasheet Preview Page 1 from Datasheet4u.com

FNA21012A-FairchildSemiconductor.pdf

FNA21012A Datasheet Preview — Preview of FNA21012A PDF

Datasheet Details

Part number:

FNA21012A

Manufacturer:

Fairchild Semiconductor

File Size:

2.23 MB

Description:

Motion SPM 2 module

Features

* UL Certified No. E209204 (UL1557)
* 1200 V - 10 A 3-Phase IGBT Inverter, Including Control ICs for Gate Drive and Protections
* Low-Loss, Short-Circuit-Rated IGBTs
* Very Low Thermal Resistance Using Al2O3 DBC Substrate
* Built-In Bootstrap Diodes and Dedica

Applications

* Motion Control - Industrial Motor (AC 400 V Class) Related Resources
* AN-9075 - Users Guide for 1200V SPM® 2 Series
* AN-9076 - Mounting Guide for New SPM® 2 Package
* AN-9079 - Thermal Performance of 1200V Motion SPM® 2 Series by Mounting Torque Figure 1. Packag
