FNA22512A 1200 V Motion SPM 2 Series

Fairchild Semiconductor

Description

FNA22512A 1200 V Motion SPM® 2 Series October 2014 FNA22512A 1200 V Motion SPM® 2 Series .
The FNA22512A is a Motion SPM® 2 module providing a fully-featured, high-performance inverter output stage for AC induction, BLDC, and PMSM motors.

📥 Download Datasheet

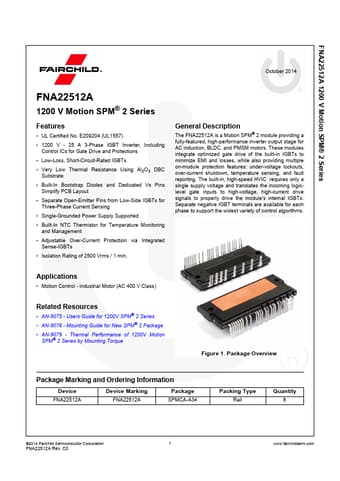

FNA22512A Datasheet Preview — Preview of FNA22512A PDF

Datasheet Specifications

Part number: FNA22512A
Manufacturer: Fairchild Semiconductor
File Size: 1.60 MB
Datasheet: FNA22512A-FairchildSemiconductor.pdf
Description: 1200 V Motion SPM 2 Series

Features

* UL Certified No. E209204 (UL1557)
* 1200 V - 25 A 3-Phase IGBT Inverter, Including Control ICs for Gate Drive and Protections
* Low-Loss, Short-Circuit-Rated IGBTs
* Very Low Thermal Resistance Using Al2O3 DBC Substrate
* Built-In Bootstrap Diodes and Dedica

Applications

* Motion Control - Industrial Motor (AC 400 V Class) Related Resources
* AN-9075 - Users Guide for 1200V SPM® 2 Series
* AN-9076 - Mounting Guide for New SPM® 2 Package
* AN-9079 - Thermal Performance of 1200V Motion SPM® 2 Series by Mounting Torque Figure 1. Packag
