FNA41060

Smart Power Module

FNA41060 Features

* 600V-10A 3-phase IGBT inverter bridge including control ICs for gate driving and protection

* Easy PCB layout due to built-in bootstrap diode and VS output

* Divided negative dc-link terminals for inverter current sensing applications

* Single-grounded power supply

FNA41060 General Description

TM Applications

* AC 100V ~ 253V three-phase inverter drive for small power ac motor drives

* Home appliances applications like air conditioner and refrigerator It is an advanced motion-smart power module (Motion-SPMTM) that Fairchild has newly developed and designed to provide ve.

FNA41060 Datasheet (953.09 KB)

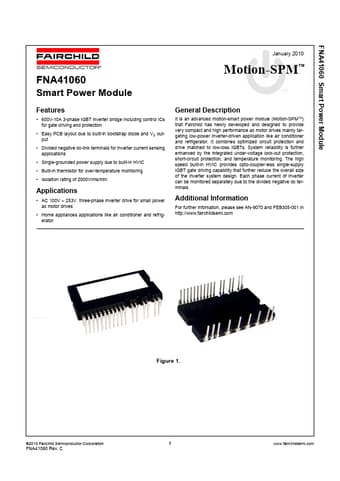

Preview of FNA41060 PDF
