FPF2701

Adjustable Over-Current Protection Load Switches

FPF2701 Features

* 2.8 V to 36 V Input Voltage Range

* Typical RDS(ON)=88 m

* 0.4 A to 2 A Adjustable Current Limit (Min.)

* Slew Rate Controlled

* ESD Protected, above 2000 V HBM

* Thermal Shutdown

* Active LOW Enable

* UVLO Protection

* Power-Good Output Applications

* Moto

FPF2701 General Description

The AccuPower™ FPF270X series is a family of current-limit load switches that provide full protection to systems and loads from excess current conditions. Minimum current limit is adjustable from 0.4 A to 2.0 A. The FPF270X contains a slew-rate-controlled N-channel MOSFET and slew-rated turn-on to p.

FPF2701 Datasheet (1.73 MB)

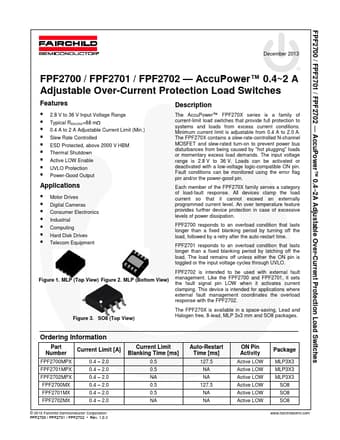

Preview of FPF2701 PDF

Datasheet Details

Part number:

FPF2701

Manufacturer:

Fairchild Semiconductor

File Size:

1.73 MB

Description:

Adjustable over-current protection load switches.
FPF2700 / FPF2701 / FPF2702

* AccuPower™ 0.4~2A Adjustable Over-Current Protection Load Switches December 2013 FPF2700 / FPF2701 / FPF2702 <.
