FPF2165, FPF2163 Datasheet - ON Semiconductor

FPF2165 Full Function Load Switch

The FPF2163, FPF2164, and FPF2165 is a series of load switches which provides full protection to systems and loads which may encounter large current conditions. These devices contain a 0.12 W current *limited P *channel MOSFET which can operate over an input voltage range of 1.8

FPF2165 Features

* 1.8 to 5.5 V Input Voltage Range

* Controlled Turn

* On

* 0.15

* 1.5 A Adjustable Current Limit

* Undervoltage Lockout

* Thermal Shutdown

FPF2163-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: FPF2165, FPF2163. Please refer to the document for exact specifications by model.

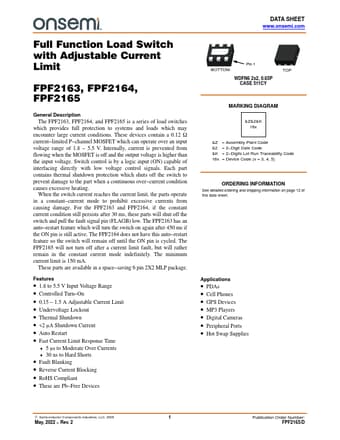

FPF2165 Datasheet Preview Page 2 FPF2165 Datasheet Preview Page 3

Datasheet Details

Part number:

FPF2165, FPF2163

Manufacturer:

ON Semiconductor ↗

File Size:

554.19 KB

Description:

Full function load switch.

Note:

This datasheet PDF includes multiple part numbers: FPF2165, FPF2163.
Please refer to the document for exact specifications by model.
