FPF2163

Full Function Load Switch

Fairchild Semiconductor

FPF2163 Features

* 1.8 to 5.5V Input Voltage Range

* Controlled Turn-On

* 0.15-1.5A Adjustable Current Limit

* Undervoltage Lockout

* Thermal Shutdown

FPF2163 General Description

The FPF2163, FPF2164, and FPF2165 is a series of load switches which provides full protection to systems and loads which may encounter large current conditions. These devices contain a 0.12Ω current-limited P-channel MOSFET which can operate over an input voltage range of 1.8-5.5V. Internally, curre.

FPF2163 Datasheet (842.76 KB)

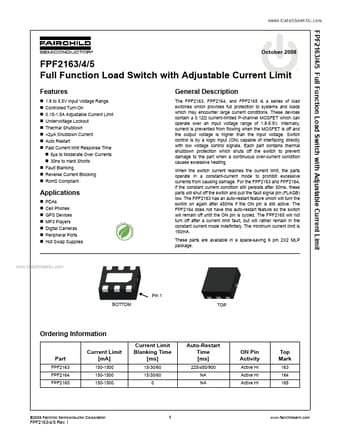

FPF2163 Datasheet Preview — Preview of FPF2163 PDF

Datasheet Details

Part number:

FPF2163

Manufacturer:

Fairchild Semiconductor

File Size:

842.76 KB

Description:

Full function load switch.
FPF2163/4/5 Full Function Load Switch with Adjustable Current Limit October 2008 FPF2163/4/5 Full Function Load Switch with Adjustable Current Limit.
