FSDM0565R - Green Mode Fairchild Power Switch

Fairchild Semiconductor

📥 Download Datasheet

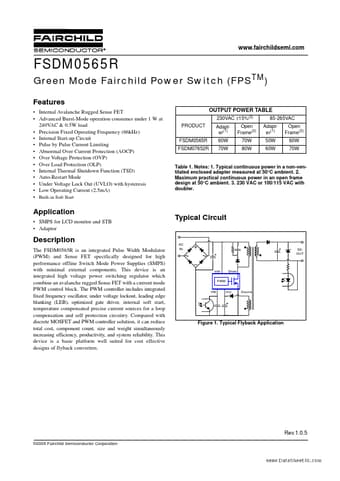

FSDM0565R Datasheet Preview — Preview of FSDM0565R PDF

Datasheet Details

Part number: FSDM0565R
Manufacturer: Fairchild Semiconductor
File Size: 265.78 KB
Datasheet: FSDM0565R_FairchildSemiconductor.pdf
Description: Green Mode Fairchild Power Switch

FSDM0565R Product details

Description

The FSDM0565R is an integrated Pulse Width Modulator (PWM) and Sense FET specifically designed for high performance offline Switch Mode Power Supplies (SMPS) with minimal external components.

Features

Green Mode Fairchild Power Switch (FPSTM).
Internal Avalanche Rugged Sense FET.
Advanced Burst-Mode operation consumes under 1 W at 240VAC & 0.5W load.
Precision Fixed Operating Frequency (66kHz).
Internal Start-up Circuit.
Pulse by Pulse Current Limiting.
Abnormal Over Current Protection (AOCP).
Over Voltage Protection (OVP).
Over Load Protection (OLP).
Internal Thermal Shutdown Function (TSD).
Auto-Resta.
