FSUSB74 Datasheet - Fairchild Semiconductor

4:1 High-Speed USB Multiplexer/Switch

FSUSB74 Features

* Switch Type USB RON CON ESD (IEC61000-4-2) VCC ICCSLP ICCACT Package Ordering Information 4:1 USB 2.0 High

* Speed Compliant USB 2.0 Full-Speed Compliant 6.5Ω 7.5pF 15kV (Air) 8kV (Contact) 2.7 to 4.4V

FSUSB74 General Description

The FSUSB74 is a bi-directional, low-power, high-speed USB 2.0 4:1 MUX. It is optimized for switching from four high-speed (480Mbps) sources or any combination of highspeed and full-/low-speed USB/UART sources to one USB 2.0 connector. Applications * MP3 Portable Media Players * Cellular Pho.

FSUSB74 Datasheet (515.17 KB)

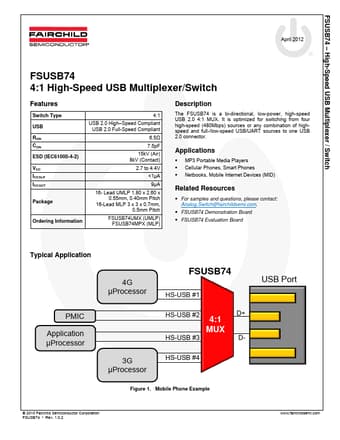

FSUSB74 Datasheet Preview — Preview of FSUSB74 PDF

Datasheet Details

Part number:

FSUSB74

Manufacturer:

Fairchild Semiconductor

File Size:

515.17 KB

Description:

4:1 high-speed usb multiplexer/switch.
