H11L2M - 6-Pin DIP Schmitt Trigger Output Optocoupler

Datasheet Summary

Description

The H11LXM series has a high speed integrated circuit detector optically coupled to a gallium-arsenide infrared emitting diode.

The output incorporates a Schmitt trigger, which provides hysteresis for noise immunity and pulse shaping.

Features

  • High data rate, 1 MHz typical (NRZ).
  • Free from latch up and oscilliation throughout voltage and temperature ranges.
  • Microprocessor compatible drive.
  • Logic compatible output sinks 16 mA at 0.4 V maximum.
  • Guaranteed on/off threshold hysteresis.
  • Wide supply voltage capability, compatible with all popular logic systems.
  • Underwriters Laboratory (UL) recognized.
  • file #E90700, Volume 2.
  • VDE recognized.
  • File#102497.

📥 Download Datasheet

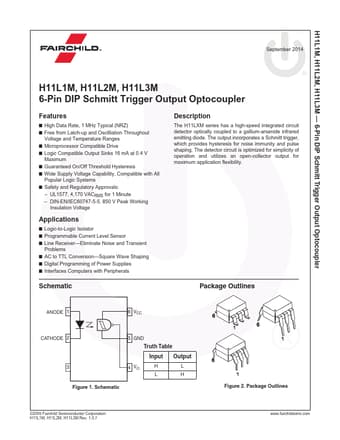

Datasheet preview – H11L2M

Datasheet Details

Part number H11L2M
Manufacturer Fairchild Semiconductor
File Size 285.38 KB
Description 6-Pin DIP Schmitt Trigger Output Optocoupler
Datasheet download datasheet H11L2M Datasheet
Additional preview pages of the H11L2M datasheet.

📁 Similar Datasheet

  • H11L2M - 6-Pin DIP Schmitt Trigger Output Optocoupler (ON Semiconductor)
  • H11L2M-L - Photocoupler (LITE-ON)
  • H11L2 - 6-Pin DIP Optoisolators Logic Output (Motorola Inc)
  • H11L2 - 6-pin dip optoisolators logic output (QT Optoelectronics)
  • H11L2 - Schmitt Trigger (CT Micro)
  • H11L2 - 6 PIN DIP SCHMITT TRIGGER PHOTOCOUPLER (Everlight)
  • H11L2-L - Photocoupler (LITE-ON)
  • H11L2S-L - Photocoupler (LITE-ON)
  • H11L1 - 6-Pin DIP Optoisolators Logic Output (Motorola Inc)
  • H11L1 - MICROPROCESSOR COMPLATIBLE CAAS SCHMITT TRIGGER OPTOCOUPLERS (QT Optoelectronics)
Other Datasheets by Fairchild Semiconductor
  • H11L1M - 6-Pin DIP Schmitt Trigger Output Optocoupler
  • H11L3M - 6-Pin DIP Schmitt Trigger Output Optocoupler
  • H11A1 - GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS
  • H11A2 - GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS
  • H11A3 - GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS
  • H11A4 - GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS
  • H11A5 - GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS
  • H11A617 - 4-PIN PHOTOTRANSISTOR OPTOCOUPLERS

Full PDF Text Transcription

Click to expand full text
6-PIN DIP OPTOISOLATORS LOGIC OUTPUT H11L1M PACKAGE H11L2M H11L3M SCHEMATIC ANODE 1 6 VCC 6 6 1 1 3 4 VO CATHODE 2 5 GND 6 1 DESCRIPTION The H11LXM series has a high speed integrated circuit detector optically coupled to a gallium-arsenide infrared emitting diode. The output incorporates a Schmitt trigger, which provides hysteresis for noise immunity and pulse shaping. The detector circuit is optimized for simplicity of operation and utilizes an open collector output for maximum application flexibility. Truth Table Input H L Output L H FEATURES • High data rate, 1 MHz typical (NRZ) • Free from latch up and oscilliation throughout voltage and temperature ranges. • Microprocessor compatible drive • Logic compatible output sinks 16 mA at 0.
