H11A4, GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS

GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS 4N25 4N37 4N26 H11A1 4N27 H11A2 4N28 H11A3 4N35 H11A4 SCHEMATIC 1 6 4N36 H11A5 WHITE PACKAGE (-M .
The general purpose optocouplers consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line packa.

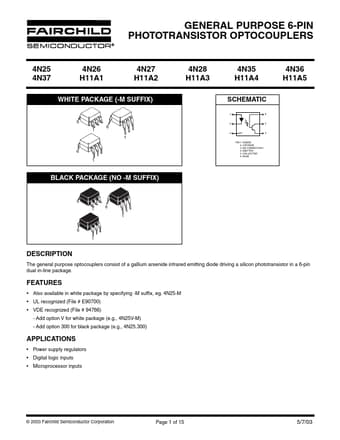

datasheet Preview Page 1 from Datasheet4u.com

H11A4_FairchildSemiconductor.pdf

H11A4 Datasheet Preview — Preview of H11A4 PDF

Datasheet Details

Part number:

H11A4

Manufacturer:

Fairchild Semiconductor

File Size:

210.41 KB

Description:

GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS

Features

* Also available in white package by specifying -M sufﬁx, eg. 4N25-M
* UL recognized (File # E90700)

Applications

* Power supply regulators
* Digital logic inputs
* Microprocessor inputs © 2003 Fairchild Semiconductor Corporation Page 1 of 15 5/7/03 GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS 4N25 4N37 4N26 H11A1 4N27 H11A2 4N28 H11A3 4N35 H11A4 4N36 H11A5 ABSOLUTE MAXIMUM RA
