H11A817B Datasheet, Optocouplers, QT Optoelectronics

H11A817B Features

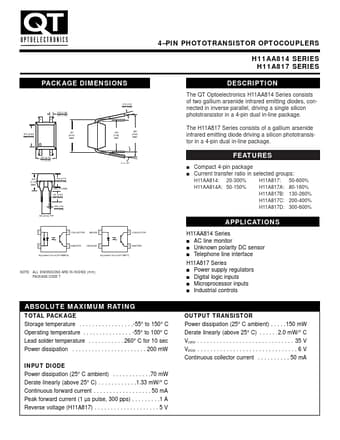

• Optocouplers 0 to 15° s s .200 (5.10) MAX .158 (4.01) .144 (3.68) .020 (.51) MIN .154 (3.90) .120 (3.05) Compact 4-pin package Current transfer ratio in selected groups: H11AA814: 20-300% H11AA814

PDF File Details

Part number:

H11A817B

Manufacturer:

QT Optoelectronics

File Size:

30.01kb

Download:

📄 Datasheet

Description:

4-pin phototransistor optocouplers. The QT Optoelectronics H11AA814 Series consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driv

H11A817B Application

• Applications 1 4 COLLECTOR ANODE 1 4 COLLECTOR 2 3 EMITTER CATHODE 2 3 EMITTER Equivalent Circuit (H11AA814) Equivalent Circuit (H11A817)
