H11A817 Datasheet - Fairchild Semiconductor

4-PIN PHOTOTRANSISTOR OPTOCOUPLERS

H11A817 Features

* Compact 4-pin package

* Current transfer ratio in selected groups: H11AA814: 20-300% H11A817: H11AA814A: 50-150% H11A817A: H11A617A: 40%-80% H11A817B: H11A617B: 63%-125% H11A817C: H11A617C: 100%-200% H11A817D: H11A617D: 160%-320%

* Minimum BVCEO of 70V guaranteed 50-600% 80

H11A817 General Description

The H11AA814 Series consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a single silicon phototransistor in a 4-pin dual in-line package. The H11A617 and H11A817 Series consists of a gallium arsenide infrared emitting diode driving a silicon phototransis.

H11A817 Datasheet (496.45 KB)

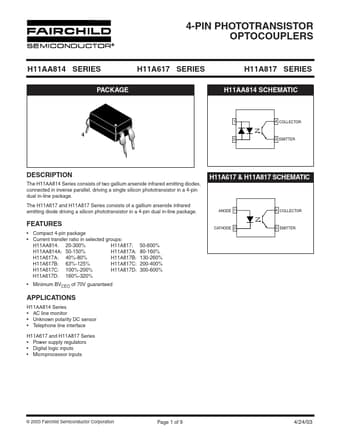

H11A817 Datasheet Preview — Preview of H11A817 PDF

Datasheet Details

Part number:

H11A817

Manufacturer:

Fairchild Semiconductor

File Size:

496.45 KB

Description:

4-pin phototransistor optocouplers.
4-PIN PHOTOTRANSISTOR OPTOCOUPLERS H11AA814 SERIES PACKAGE H11A617 SERIES H11A817 SERIES H11AA814 SCHEMATIC 1 4 COLLECTOR 4 2 3 EMITTER 1 DESCR.
