H22B3 - PHOTODARLINGTON OPTICAL INTERRUPTER SWITCH

H22B3 Description

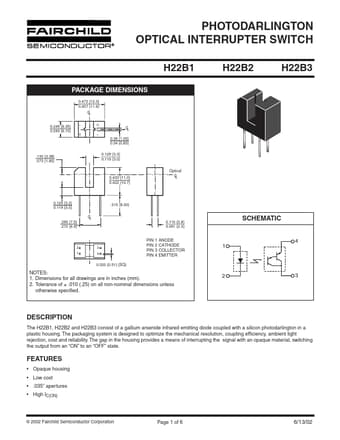

PHOTODARLINGTON OPTICAL INTERRUPTER SWITCH H22B1 PACKAGE DIMENSIONS 0.472 (12.0) 0.457 (11.6) C L 0.249 (6.35) 0.243 (6.15) + E D + H22B2 H22B3 C L.
The H22B1, H22B2 and H22B3 consist of a gallium arsenide infrared emitting diode coupled with a silicon photodarlington in a plastic housing.

H22B3 Features

* Opaque housing
* Low cost
* .035" apertures
* High IC(ON) © 2002 Fairchild Semiconductor Corporation Page 1 of 6 6/13/02 PHOTODARLINGTON OPTICAL INTERRUPTER SWITCH H22B1 H22B2 H22B3 ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise specified) Parameter Operat
