H22B6 - PHOTODARLINGTON OPTICAL INTERRUPTER SWITCH

Datasheet Summary

Description

The H22B4, H22B5 and H22B6 consist of a gallium arsenide infrared emitting diode coupled with a silicon photodarlington in a plastic housing.

The packaging system is designed to optimize the mechanical resolution, coupling efficiency, ambient light rejection, cost and reliability.

Features

  • Opaque housing.
  • Low cost.
  • 035" apertures.
  • High IC(ON) © 2002 Fairchild Semiconductor Corporation Page 1 of 6 6/13/02.

📥 Download Datasheet

Datasheet preview – H22B6

Datasheet Details

Part number H22B6
Manufacturer Fairchild Semiconductor
File Size 366.13 KB
Description PHOTODARLINGTON OPTICAL INTERRUPTER SWITCH
Datasheet download datasheet H22B6 Datasheet
Additional preview pages of the H22B6 datasheet.

📁 Similar Datasheet

  • H22B6 - SLOTTED OPTICAL SWITCH (QT Optoelectronics)
  • H22B1 - SLOTTED OPTICAL SWITCH (QT Optoelectronics)
  • H22B2 - SLOTTED OPTICAL SWITCH (QT Optoelectronics)
  • H22B3 - SLOTTED OPTICAL SWITCH (QT Optoelectronics)
  • H22B4 - SLOTTED OPTICAL SWITCH (QT Optoelectronics)
  • H22B5 - SLOTTED OPTICAL SWITCH (QT Optoelectronics)
  • H22A1 - SLOTTED OPTICAL SWITCH (QT Optoelectronics)
  • H22A1 - Photointerrupters (ISOCOM)
  • H22A2 - SLOTTED OPTICAL SWITCH (QT Optoelectronics)
  • H22A2 - Photointerrupters (ISOCOM)
Other Datasheets by Fairchild Semiconductor
  • H22B1 - PHOTODARLINGTON OPTICAL INTERRUPTER SWITCH
  • H22B2 - PHOTODARLINGTON OPTICAL INTERRUPTER SWITCH
  • H22B3 - PHOTODARLINGTON OPTICAL INTERRUPTER SWITCH
  • H22B4 - PHOTODARLINGTON OPTICAL INTERRUPTER SWITCH
  • H22B5 - PHOTODARLINGTON OPTICAL INTERRUPTER SWITCH
  • H22A - SLOTTED OPTICAL SWITCH
  • H22A1 - SLOTTED OPTICAL SWITCH
  • H22A2 - SLOTTED OPTICAL SWITCH

Full PDF Text Transcription

Click to expand full text

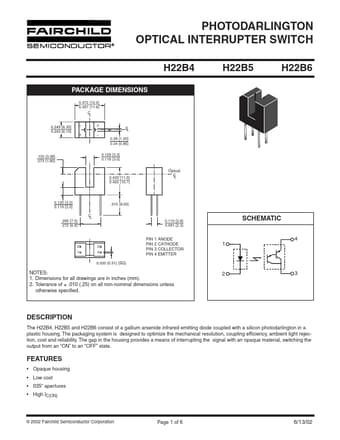

PHOTODARLINGTON OPTICAL INTERRUPTER SWITCH H22B4 PACKAGE DIMENSIONS 0.472 (12.0) 0.457 (11.6) C L 0.249 (6.35) 0.243 (6.15) + E D + H22B5 H22B6 C L 0.39 (1.00) 0.34 (0.85) 0.129 (3.3) 0.119 (3.0) Optical C L .133 (3.38) .073 (1.85) 0.433 (11.0) 0.422 (10.7) 0.125 (3.2) 0.119 (3.0) C L .295 (7.5) .272 (6.9) .315 (8.00) 0.110 (2.8) 0.091 (2.3) SCHEMATIC 4 2 1 3 4 PIN PIN PIN PIN 1 2 3 4 ANODE CATHODE COLLECTOR EMITTER 1 0.020 (0.51) (SQ) NOTES: 1. Dimensions for all drawings are in inches (mm). 2. Tolerance of ± .010 (.25) on all non-nominal dimensions unless otherwise specified. 2 3 DESCRIPTION The H22B4, H22B5 and H22B6 consist of a gallium arsenide infrared emitting diode coupled with a silicon photodarlington in a plastic housing.
