HCPL-2531, HCPL2503 Datasheet - Fairchild Semiconductor

HCPL-2531 HIGH SPEED TRANSISTOR OPTOCOUPLERS

The HCPL-4502/HCPL-2503, 6N135/6 and HCPL-2530/HCPL-2531 optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocoup.

HCPL-2531 Features

* High speed-1 MBit/s Superior CMR-10 kV/µs Dual-Channel HCPL-2530/HCPL-2531 Double working voltage-480V RMS CTR guaranteed 0-70°C U.L. recognized (File # E90700) APPLICATIONS

* Line receivers Pulse tran

HCPL2503_FairchildSemiconductor.pdf

This datasheet PDF includes multiple part numbers: HCPL-2531, HCPL2503. Please refer to the document for exact specifications by model.

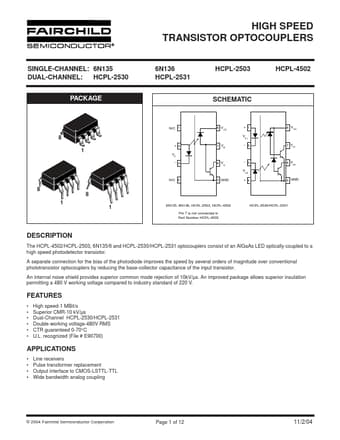

HCPL-2531 Datasheet Preview Page 2 HCPL-2531 Datasheet Preview Page 3

Datasheet Details

Part number:

HCPL-2531, HCPL2503

Manufacturer:

Fairchild Semiconductor

File Size:

200.19 KB

Description:

High speed transistor optocouplers.

Note:

This datasheet PDF includes multiple part numbers: HCPL-2531, HCPL2503.
Please refer to the document for exact specifications by model.
