HCPL0600 Datasheet, Optocouplers, Fairchild Semiconductor

HCPL0600 Features

  • Optocouplers
  • Compact SO8 package
  • Very high speed-10 MBit/s
  • Superior CMR
  • Logic gate output
  • Strobable output (single channel devices)
  • Wired

PDF File Details

Part number:

HCPL0600

Manufacturer:

Fairchild Semiconductor

File Size:

404.62kb

Download:

📄 Datasheet

Description:

High speed-10 mbit/s logic gate optocouplers. The HCPL06XX optocouplers consist of an AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate with

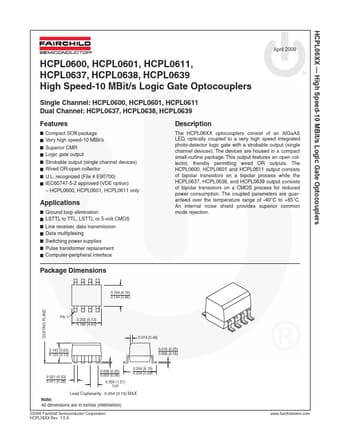

Datasheet Preview: HCPL0600 📥 Download PDF (404.62kb)
Page 2 of HCPL0600 Page 3 of HCPL0600

HCPL0600 Application

  • Applications
  • Ground loop elimination
  • LSTTL to TTL, LSTTL or 5-volt CMOS
  • Line receiver, data transmission
  • Dat
